Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: BEFANBY
  • Model Number: KPX
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Application: Warehouse ,factory and working line
  • Color: Blue/Yellow/Customized
  • Certificates: CE ISO SGS
  • Warranty: 12 Months
  • Load capacity: 1-300T
  • Power supply: Storage Battery
  • Running distance: Unlimited
  • Running speed: 0-20m/min
  • Material: Q235
  • Type: Motor type

Packaging & Delivery

Packaging Details The whole cart will be packed by the tarp, the parts will be packed by polywood case.
Delivery Time Shipped in 25 days after payment

Product description
Steel box beam 10T shipyard anti-explosion railway special transfer car



Heavy duty battery operated utility cart transport vehicle for workpiece handling --- it is powered by storage battery, it is our specialized research, Simply speaking, it is an electric cart. Compared with KPD, It has no limited distance; Compared with others, it is simple operation and structure, But its main source powered is battery, the maintenance free battery is chosen to export due to its convenience. About this, it is popular in many foreign countries like South Africa ,Germany , Turkey etc.Our company have professional team and utilize more advanced technique to make it.




Application
Application Showing---- special transfer car



Heavy duty battery operated utility cart transport vehicle for workpiece handling can be used in many occasions, due to its simple structure, despite of the plant or assembly line, warehouse or port, only exists track, and the battery is charged fully,it can transport anywhere.Compared with KPJ,KPT,KPC, it is not so complicated.Compared with KPD, it is not so strict requirement,Therefore it is also the reason why many buyers like to purchase it.




Advantage of product
Character Showing----10T railway transfer car



  • Simple structure
  • Anti-explosion
  • Anti-high temperature
  • DC Motor control
  • Safe devices are installed(Sound&light alarm, dead man stop, e-stop)
  • The hydrulic lifting device can be equipped as per customers' demand
  • The V frame can be installed for cylindric material
  • Customization is provided
  • Professional and high quality
  • Long lifetime (about 2.5 years)
  • Stable start
  • Big starting power
  • Small impact to the gear reducer
  • Adjusted speed
  • Low voltage
  • For full load, it can run continuously more than 4 hours.




Working Principle---anti-explosion special transfer car

Heavy duty utility cart transport vehicle is battery powered . The battery is installed in the carts. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the flat cart to start, stop, go forward , back ward , adjust the speed and so on.



Technique Parameter----special transfer car



ModelKPX-2tKPX-5tKPX-10tKPX-16tKPX-20tKPX-25tKPX-30tKPX-40tKPX-50tKPX-63tKPX-80tKPX-100tKPX-150t
Rated Load25101620253040506380100150
Table sizeLength(L)20003500360040004000450045005000550056006000650010000
Width(W)1500200020002000220022002200250025002500260028003000
Height(H)4505005005505506006006506507008009001200
Wheel Base1200250026002800280032003200380042004300470049007000
Rail Inner Gauage1200143514351435143514351435143514351435180020002000
Wheel Diameter270300300350350400400500500600600600600
Wheel Quantity4444444444448
Ground Clearance50505050505050505075757575
Running Speed25252520202020202020202018
Motor Power11.222.233.5456.38101515
Battery Capacity180180160180180250250300330400400440600
Battery Voltage24364848484848484848727272
Running Time When Full Load4.325.44.84.3443.53.63.333.63.22.9
Max Wheel Load14.425.842.664.577.794.5110.4142.8174221.4278.4343.8265.2
Reference Weight2.83.64.25.55.96.56.87.6810.812.814.626.8
Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50P50QU100QU100

Processing flow



Processing flow




Packing& Delivery
Packing& Delivery




Our company
Our Company----BEFANBY

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.




Our customer
Our Customer

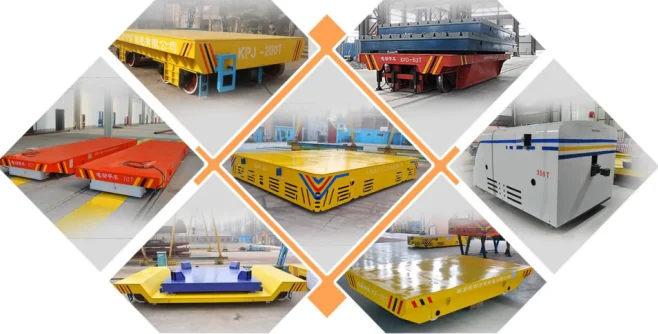

Our other product showing
After-sale Service
Our After Service



  • The load bearing safety factor of the trolley is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
  • 16 hours engineering service and 24 hours internet service for our customers
  • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
